Heat Exchangers Types And Working Principle



Types of heat exchangers

In industrial processing, managing thermal energy is vital. Whether you are involved in crude oil refining, milk pasteurization, or cooling a large data center, it is essential to have a method for transferring heat from areas where it is not needed to locations where it can be utilized or released.

What is an Industrial Heat Exchanger?
An industrial heat exchanger is a specialized apparatus designed to facilitate heat transfer between two or more fluids—whether liquids, vapors, or gases—at varying temperatures. Typically, in industrial settings, these fluids are kept physically distinct by a solid barrier (such as a tube or plate) to avoid mixing, although certain designs allow for direct contact between the fluids.

Understanding Heat Transfer Mechanisms
In a heat exchanger, heat transfer mainly takes place through two processes: convection (within the moving fluids) and conduction (through the material that separates the fluids).

The efficiency of this process is generally governed by the fundamental heat transfer equation:

Q = U .A.∆ Tlm

Where:

• Q is the heat transfer rate.
• U is the overall heat transfer coefficient (determined by fluid properties and material).
• A is the heat transfer surface area.
• \Delta T_{lm}$ is the logarithmic mean temperature difference, representing the effective temperature driving force between the two fluids.

Industrial heat exchangers can be systematically categorized based on their construction and design features. This classification helps in understanding the operational principles and typical applications of each type.

1. Classification by Construction and Design

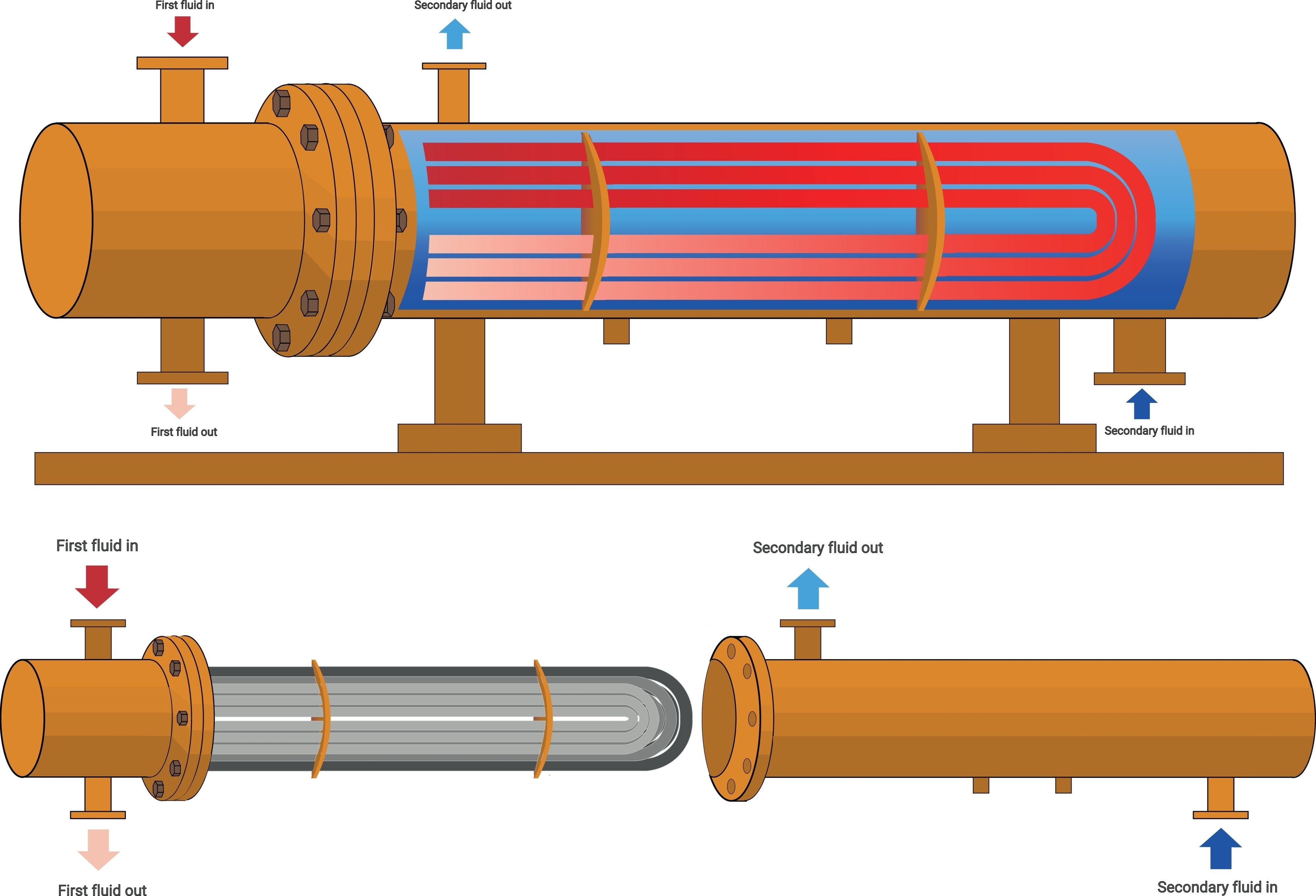

Shell & Tube Heat Exchangers

This is the most common design in high-pressure applications. It consists of a large cylindrical "shell" with a bundle of "tubes" inside. One fluid flows through the tubes, while the other flows over the tubes through the shell.

• Advantages: Handles high pressures and temperatures; easy to maintain and repair.
• Common applications: Include oil refineries, power plants, and large-scale chemical processing facilities.

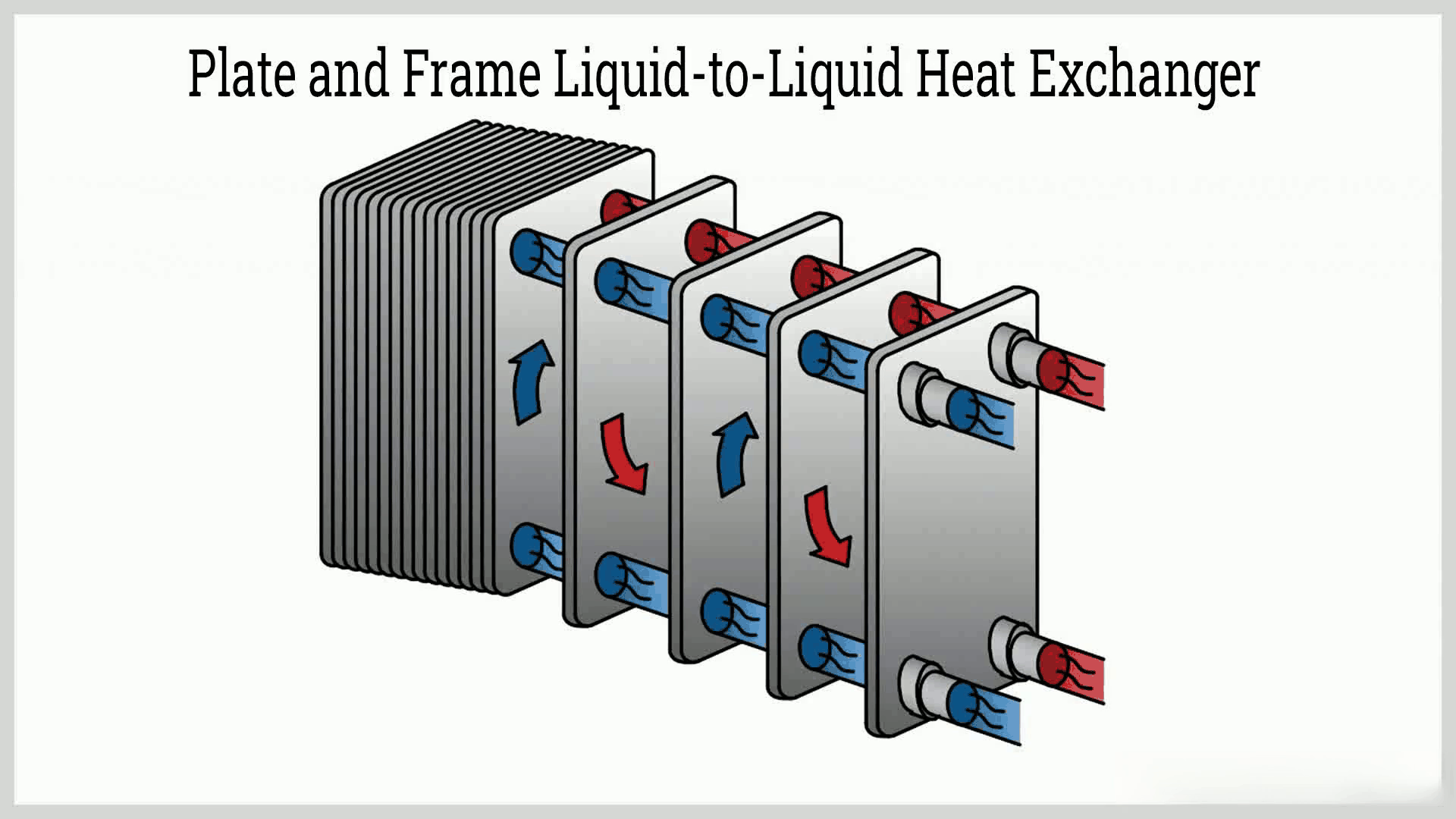

Plate & Frame Heat Exchangers

These consist of a sequence of thin, corrugated metal panels pressed together. The fluids flow through the gaps created between the panels.

Advantages: Extremely high thermal transfer efficiency, a very compact footprint, and easy scalability by adding more panels.

Common Uses: Food and beverage processing (pasteurization), HVAC systems, and pharmaceutical manufacturing.

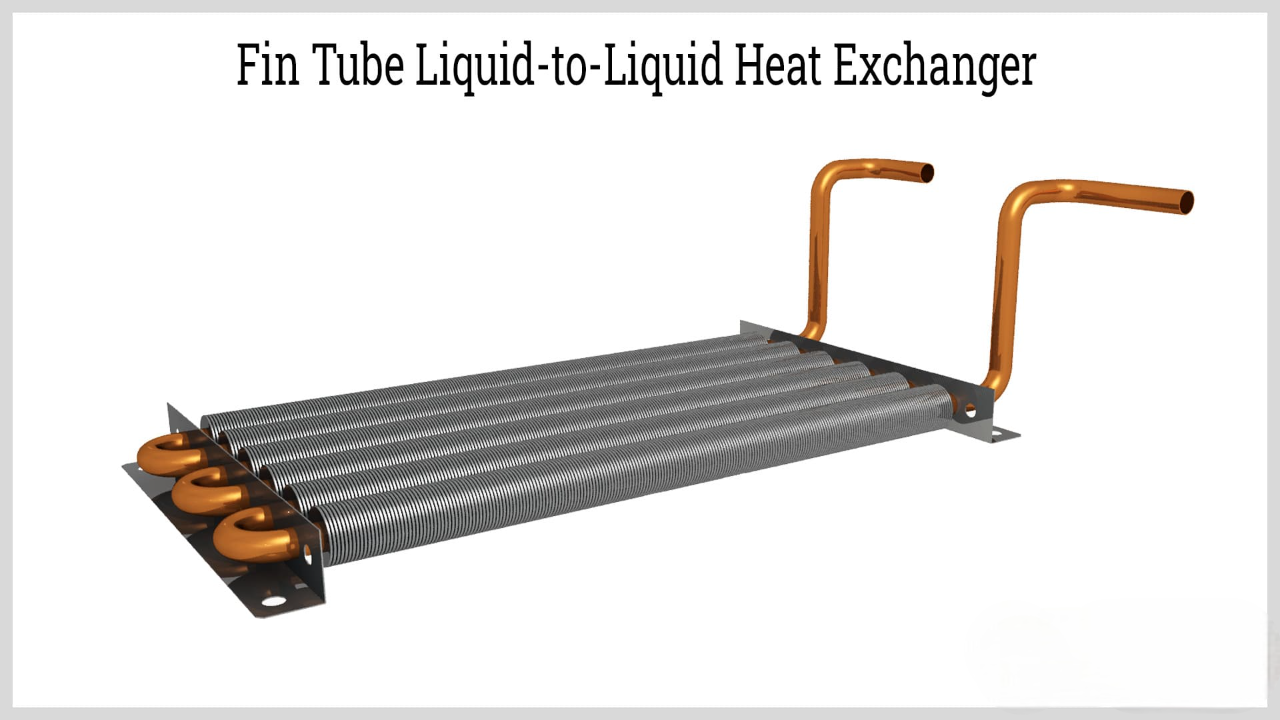

Finned Tube (Air-Cooled) Heat Exchangers

These systems consist of tubes with extended surfaces called "fins" that are mounted on the outside. These fins significantly enhance the surface area for heat transfer, typically employed when one of the fluids is a gas (like air).

Advantages: Efficient for low-conductivity fluids such as air; eliminates the requirement for a secondary water cooling loop.

Common Uses: Radiators in engines, condensers in air conditioning systems, and gas compressors.

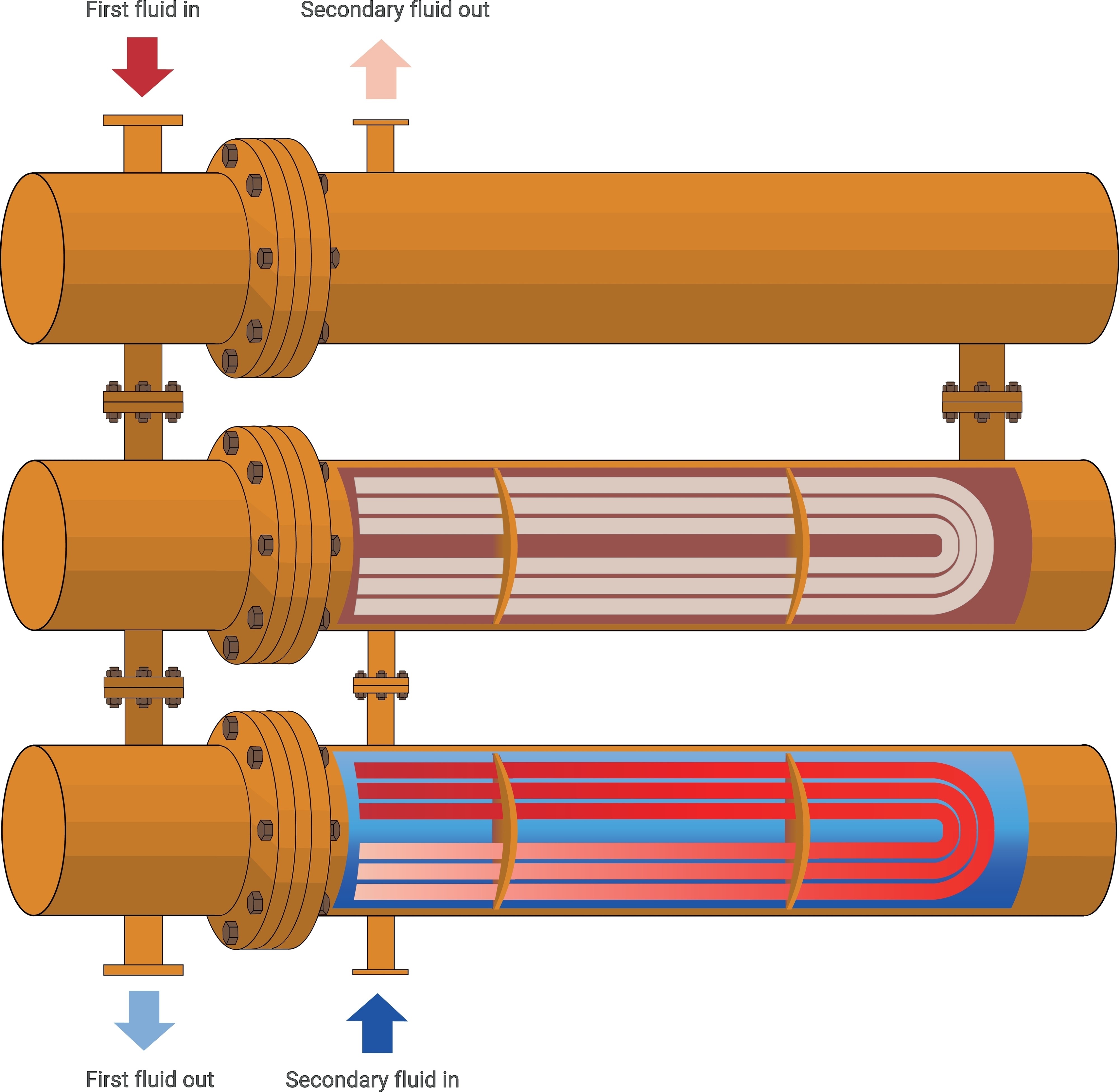

Double Pipe Heat Exchangers

The most straightforward design features a single pipe positioned concentrically within another. One fluid travels through the inner pipe, while the other moves through the annular space surrounding the two pipes.

Benefits: Affordable and simple to construct; suitable for small-scale operations or fluids that tend to foul easily.

Common Uses: Small-scale chemical heating applications and cooling of thick liquids.

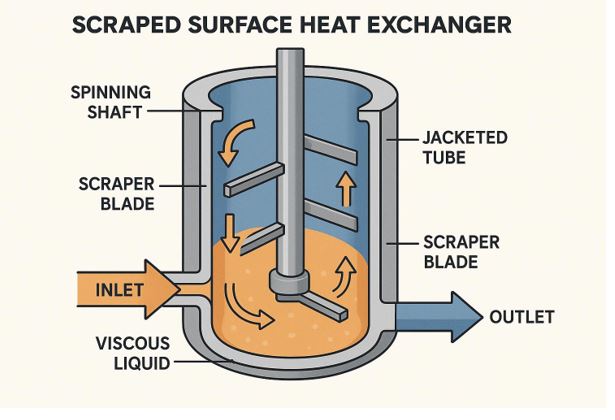

Scraped Surface Heat Exchangers

Tailored for fluids that are very thick or likely to foul (stick to the walls). Inside the exchanger, a rotating shaft is fitted with blades that perpetually scrape the inner surface.

Benefits: Include handling high-viscosity materials and preventing burning or crystallisation on walls.

Common Uses: Wax processing and food processing (margarine, chocolate, peanut butter).

2. Classification by Flow Configuration

Heat exchangers can also be categorized according to the relative directions in which the fluids move, known as flow configurations. This classification is essential for understanding how different flow arrangements influence heat transfer efficiency and system performance.

The direction in which fluids move relative to each other significantly impacts efficiency.

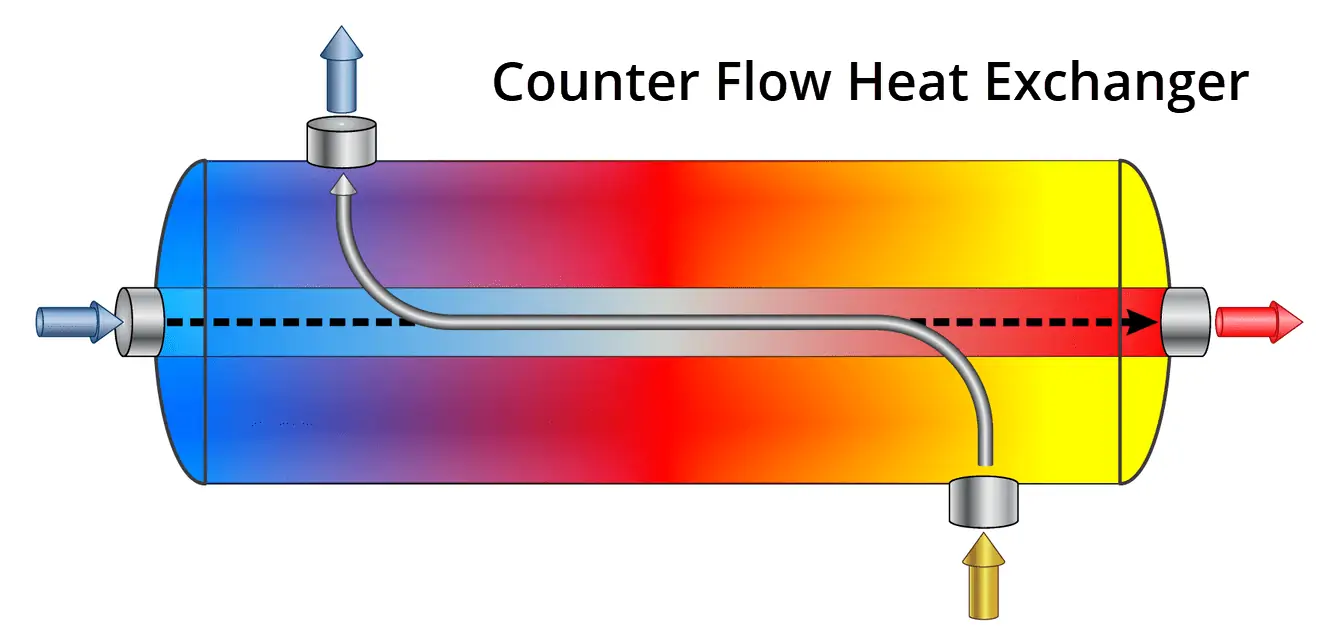

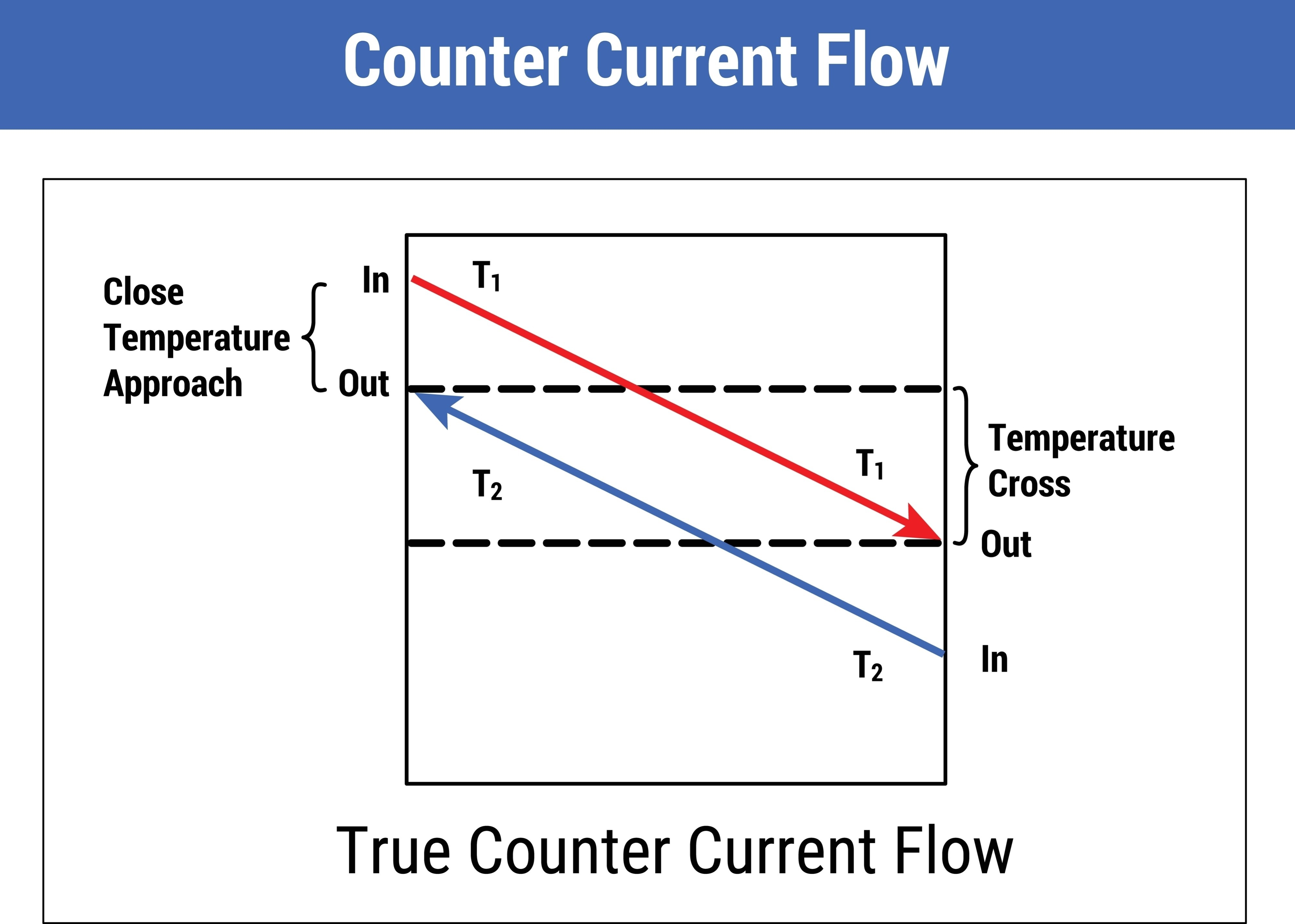

Counter-Flow

Fluids enter from opposite ends and flow in opposite directions. This is the most efficient configuration because it maintains a consistent temperature gradient across the entire length of the exchanger.

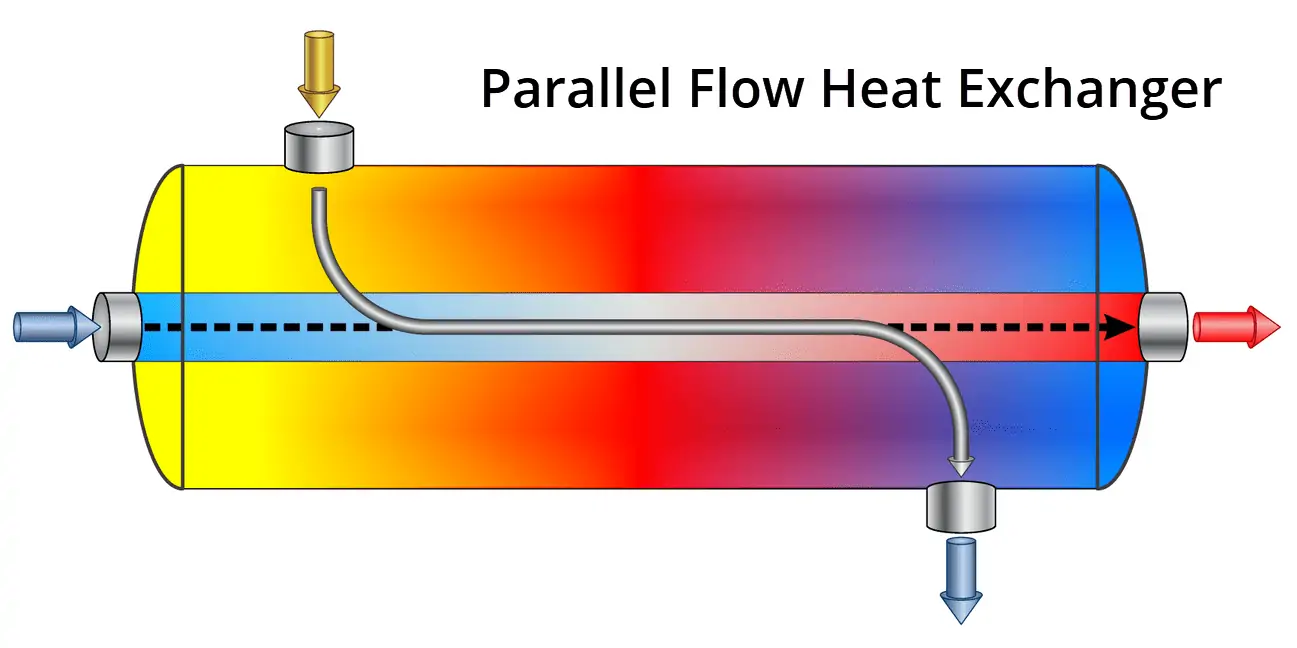

Parallel Flow

Both fluids enter at the same end and flow in the same direction. This is generally less efficient but is used when it is necessary to bring both fluids to a very similar temperature quickly.

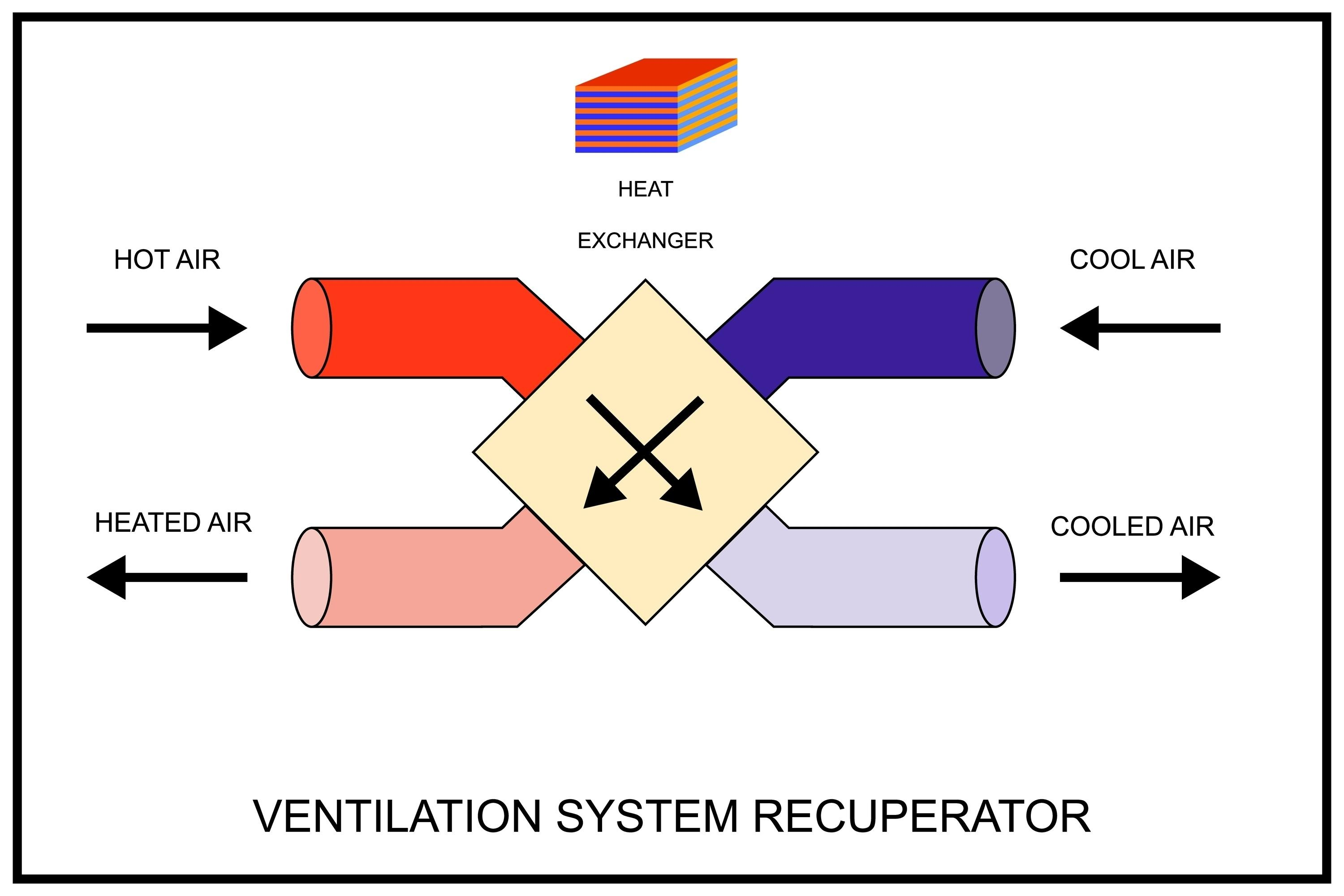

Cross-Flow

Fluids move roughly perpendicular to each other. This is commonly seen in air-cooled exchangers where air blows across a bundle of tubes.

3. Classification by Cooling/Heating Medium

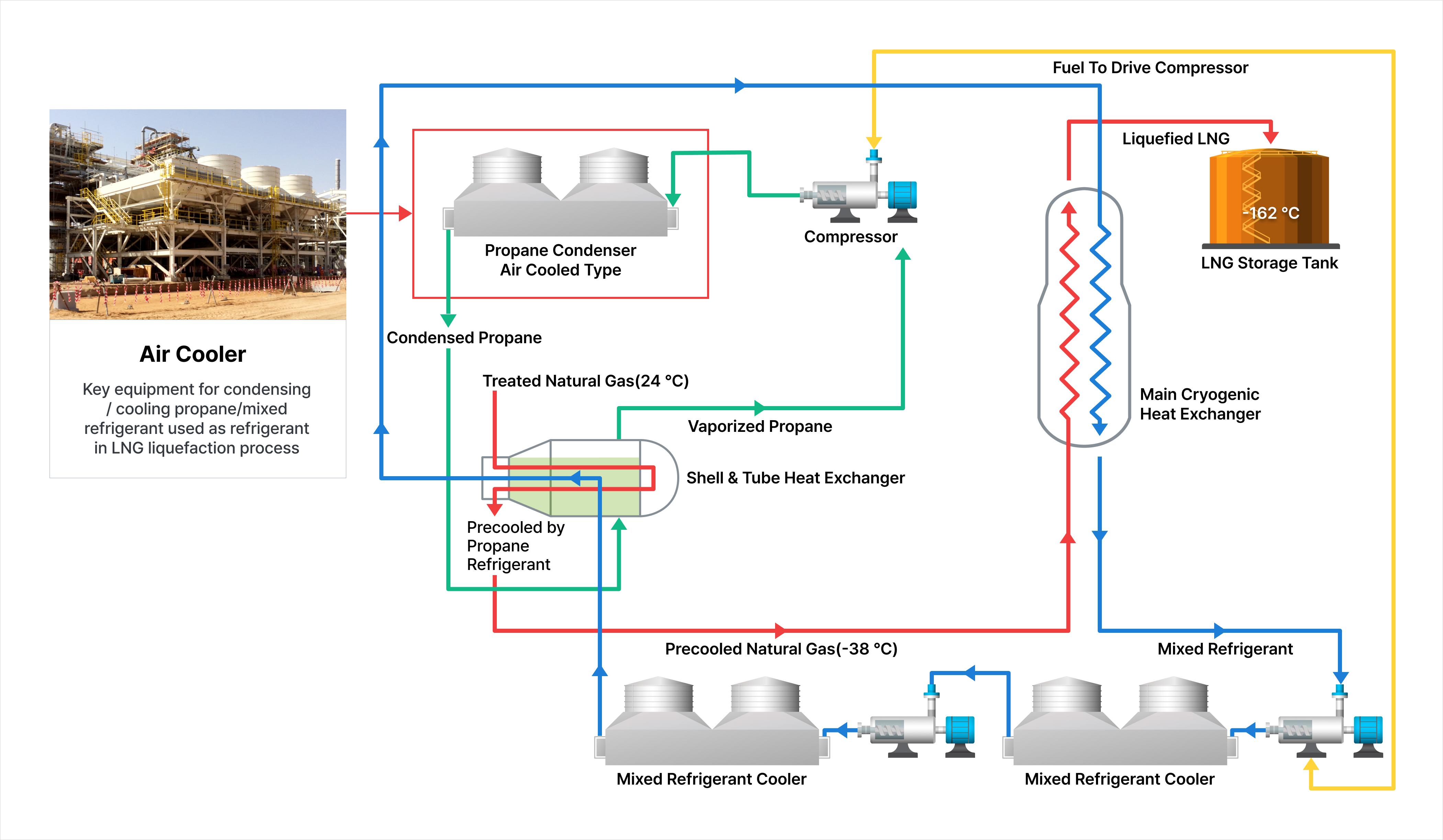

Air-Cooled

These use ambient air to cool the process fluid. They are often used in locations where water is scarce or where the environmental impact of water usage is a concern.

Example: Large "fin-fan" coolers found in desert-based oil refineries.

Liquid-Cooled

These use a liquid (usually water or a glycol mix) as the secondary medium. Liquid cooling is typically more efficient than air cooling because liquids have higher thermal conductivity.

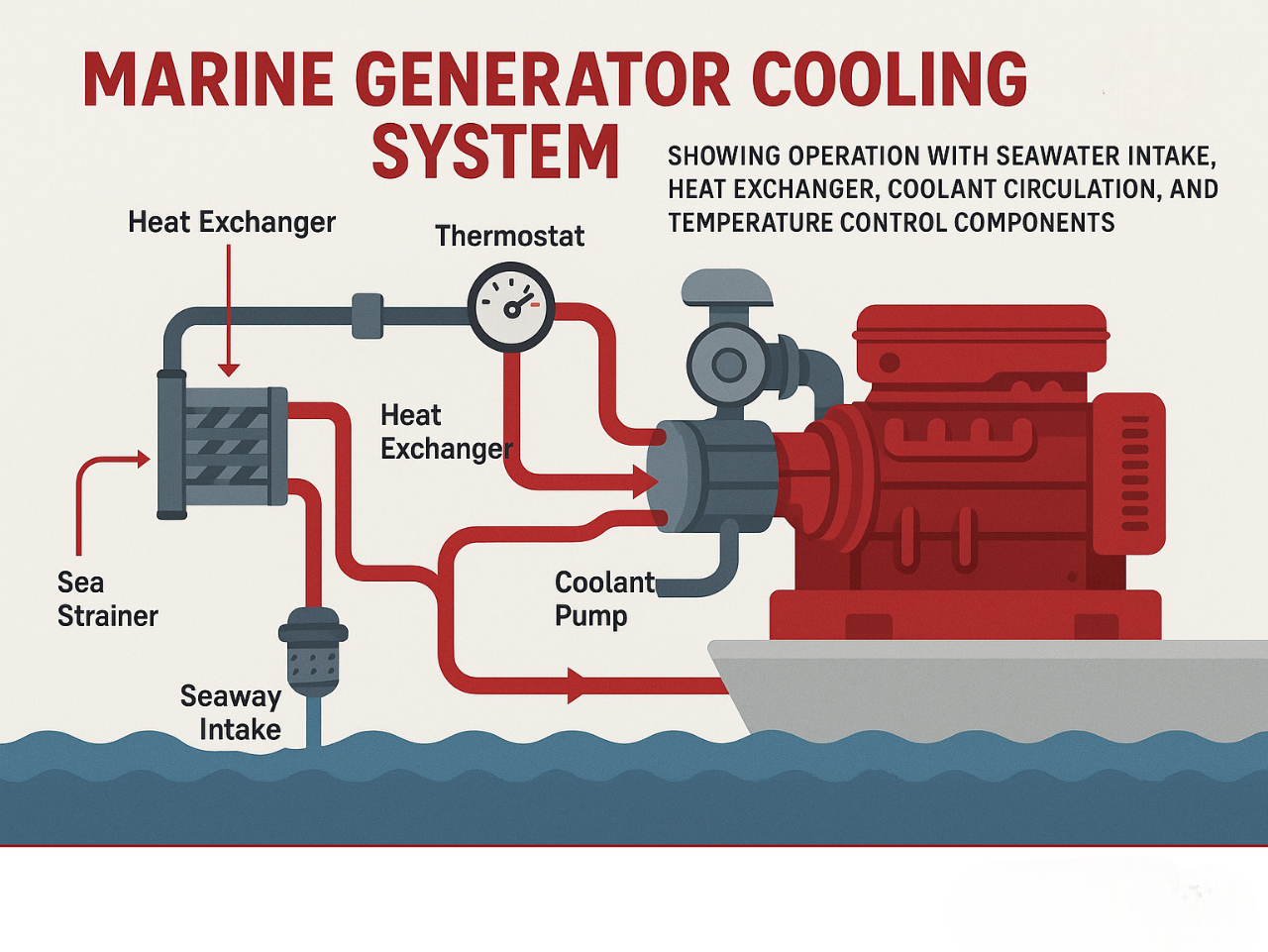

• Example: Marine engines use seawater to cool the internal engine coolant via a heat exchanger.

Where are Heat Exchangers Found? (Real-World Examples)

Refineries: To cool hot distilled fractions of crude oil before storage.

Power Plants: To condense steam back into water after it has rotated a turbine.

Refrigeration: The evaporator coil in your refrigerator serves as a heat exchanger, absorbing heat from your food.

Waste Heat Recovery: Capturing heat from the hot exhaust gases of a furnace to pre-heat incoming combustion air, thus saving fuel.
